Description

Synthetic Rope Thimble Galvanized ST Type is a durable and reliable accessory designed to protect synthetic ropes from wear and tear. Made of high-quality galvanized steel, this thimble is resistant to corrosion and can withstand heavy loads. Its ST Type design ensures a secure fit and helps to prolong the lifespan of the rope. Ideal for various applications such as marine, industrial, and recreational use, this thimble provides added strength and protection for your synthetic rope.

Synthetic Rope Thimble Galvanized ST Type-China LG™

Synthetic Rope Thimble Galvanized ST Type supplied by China LG™ is a top-quality accessory that is specially designed to enhance the durability and performance of synthetic ropes. Manufactured using high-grade galvanized steel, this thimble is built to withstand tough conditions and heavy loads, making it suitable for a wide range of applications. The ST Type design ensures a secure and precise fit for the rope, offering additional protection against abrasion and wear. Trusted by customers in China and beyond, the China LG™ Synthetic Rope Thimble Galvanized ST Type is a reliable and robust solution for ensuring the safety and longevity of synthetic ropes in various industries and applications.

Synthetic Rope Thimble Galvanized ST Type Description

Introducing the innovative Synthetic Rope Thimble Galvanized ST Type by China LG™, a cutting-edge accessory that revolutionizes heavy-duty rope thimbles for the marine towing industry. This redesigned thimble offers a new level of lightweight durability, making it easy to handle while providing maximum strength at critical points.
The spacious inside dimensions of these thimbles allow for compatibility with large towing shackles or regular shackles, ensuring versatility in various applications. Suitable for use with all types of synthetic rope, the larger sizes feature rope retaining rings for added security. Crafted from tough and wear-resistant polyallomer material through injection molding, these thimbles are ideal for lanyards, hand lines, and mooring lines.
Widely utilized in the commercial marine sector, these thimbles are a preferred choice for spring lines and mooring lines due to their reliability and performance. Experience the next level of quality and functionality with the Synthetic Rope Thimble Galvanized ST Type by China LG™.

Technical & Feature

Material	Super Carbon Steel or Super Alloy Steel
Processing	Cast
Surface Finished	Hot Dipped Galvanized / Powder Coated
Size	3″-3-3/4”, 4″-5″, 6″-7″, 8″, 9″, 10″, 11″-12″, 13″-14″, 15″-16″, 17″-18″, 19″-20″, 21″-22″24-30mm, 32-45mm, 48-56mm, 60-66mm, 68-70mm, 76-80mm 88-96mm, 108-118mm, 127-134mm, 137-146mm, 154-162mm, 170-178mm
Brand	LG™
Origin	China

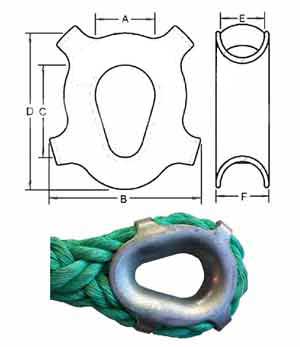

Specification-Synthetic Rope Thimble Galvanized ST Type

Part No.	Nominal Size of Rope			Dimension (mm)						Weight
Part No.	Cir. (inch)	Dia. (inch)	Dia. (mm)	A	B	C	D	E	F	kgs
LGSRST24-30	3 – 3-3/4″	1 – 1-13/16″	24 – 30	51	135	89	137	37	40	2.8
LGSRST32-45	4 – 5	1-1/4 – 1-1/2″	32-45	86	178	130	200	45	47	3.6
LGSRST48-56	6 – 7	1-7/8 – 2-1/4″	48 – 56	95	234	146	238	67.4	88	4.9
LGSRST60-66	8	2-1/2″	60 – 66	108	276	165	279	80	96	8
LGSRST68-70	9	2-7/8″	68 – 70	121	295	194	305	83	110	11.8
LGSRST76-80	10	3-1/4″	76 – 80	124	311	216	344	90	120	15
LGSRST88-96	11 – 12	3-3/8 – 4″	88 – 96	145	375	242	400	117	150	20
LGSRST108-118	13 – 14	4-1/4 – 4-5/8″	108 – 118	155	413	252	430	135	170	26
LGSRST127-134	15 – 16	5 – 5-1/4″	127 – 134	165	442	266	458	147	184	31
LGSRST137-146	17 – 18	5-3/8 – 5-3/4″	137 – 146	228	538	334	511	164	199	62
LGSRST154-162	19 – 20	6 – 6-3/8″	154 – 162	305	681	413	686	197	231	105
LGSRST170-178	21 – 22	6-3/4 – 7″	170 – 178	352	773	502	857	218	260	163
