Australian Standard Short Link Chain，China LG Supply

Description

At China LG Supply, we specialize in providing Australian Standard Short Link Chains that are specifically designed for marine anchoring and mooring applications. These chains are crafted to meet Australian standards and are suitable for use with most Australian windlasses. Our range of sizes includes 5mm, 6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, and 24mm, catering to various needs and requirements in the maritime industry. Trust China LG Supply for high-quality short link chains that offer reliability and performance in marine settings.   The Australian Standard Short Link Chain is a high-quality, durable chain that is designed to meet the strict standards set by the Australian government. This chain is perfect for a wide range of applications, including lifting, towing, and securing loads.   Made from premium-grade steel, the Australian Standard Short Link Chain is built to last and can withstand heavy loads and rough conditions. It features short links that provide added strength and durability, making it ideal for use in demanding environments.   Whether you need a reliable chain for industrial, commercial, or recreational purposes, the Australian Standard Short Link Chain is the perfect choice. Trust in the quality and performance of this chain to get the job done safely and efficiently.

Technical & Feature

Technical Notes	Conform to Australian Standard
Material	Superior Mild Steel
Processing	Welded
Surface Finished	Electric Galvanized / Hot Dip Galvanized
Size	5mm , 6mm , 8mm , 10mm , 13mm , 16mm , 20mm , 22mm , 24mm
Brand	LG™
Origin	China



Specification-Australian Standard Short Link Chain

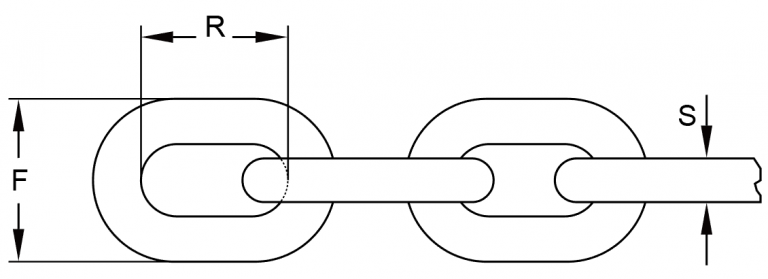

Part No.	CHAIN SIZE	WORKING LOAD	LINK DIMENSION			LINKS PER M	LENGTH PER 100KG
			DIA.(MM)	INSIDE LENGTH(MM)	OUTSIDE WIDTH(MM)		B.F.	H.D.G.
	MM	MT				PC	M	M
LG-A-SL-C-5	5	0.24	5	14.6	17.2	68.3	174	167
LG-A-SL-C-6	6	0.32	6.3	18.9	21.5	52.9	114	108
LG-A-SL-C-8	8	0.53	8.0	24.0	27.5	41.7	70.5	67.0
LG-A-SL-C-10	10	0.83	10.0	29.5	33.5	33.9	45.2	42.9
LG-A-SL-C-12	12	1.50	12.5	37.5	40.6	26.7	29.5	28.0
LG-A-SL-C-13	13	1.60	13	38.3	44.6	25.8	26.9	26.3
LG-A-SL-C-16	16	2.31	16	47.0	54.0	21.3	17.6	16.7
LG-A-SL-C-20	20	3.45	20	59.2	68.5	16.9	11.3	11.1
LG-A-SL-C-22	22	4.55	22	64.9	77	15.4	9.5	9.2
LG-A-SL-C-24	24	5.34	24	71	82.2	14.1	7.8	7.6
